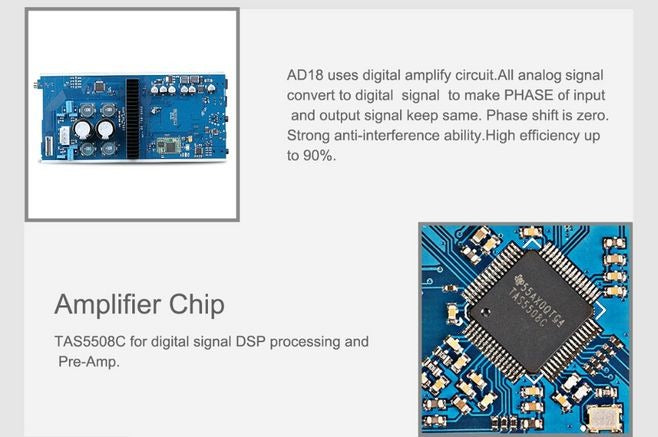

Amplifier Chip: Using TAS5508C for digital signal DSP processing and Pre-Amp.TAS5342A for digital signal rear-AMP. It will be through the LC filter and then send to the amplifier output jack.
Digital Receiving Chip: CS8422.It receives optical and coaxial signal and all signal transfer.

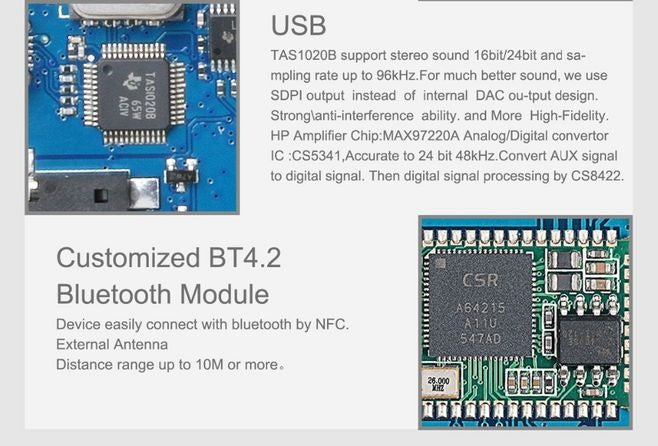

USB chip: TAS1020B. Supports stereo sound 24 bit/96 kHz.For much better sound, we use SDPI output instead of an internal DAC output design. Strong anti-interference ability and More High-Fidelity.
HP Amplifier Chip: MAX97220A. Dual-OP amplifier: NE5532 with High-efficiency low noise.
Analog/Digital converter IC: CS5341. Accurate to 24 bit 48kHz.Convert AUX signal to digital signal. Then digital signal processing by CS8422

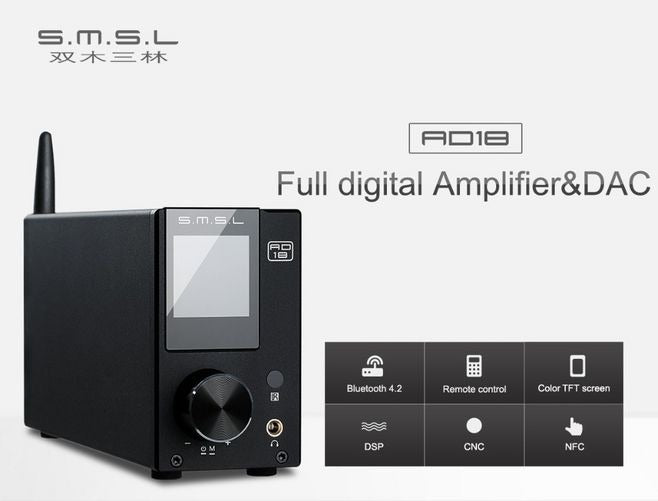

Type: Full digital decoding amplifier

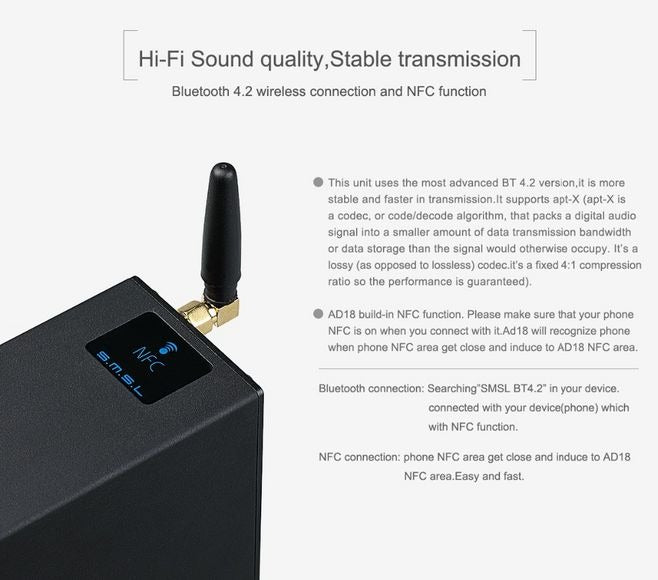

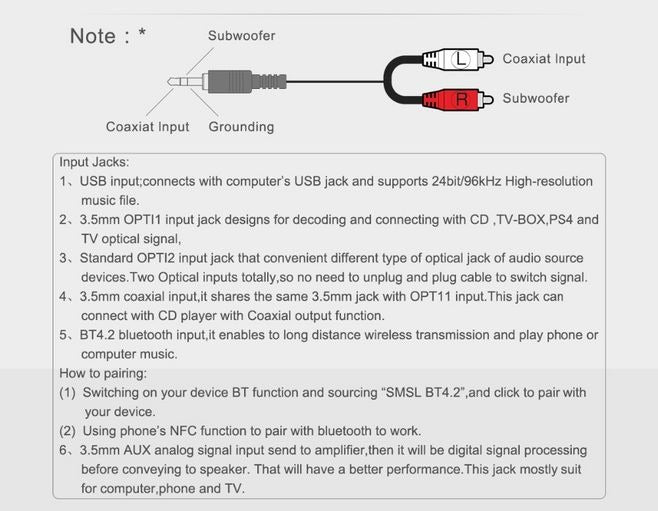

Input port: USB/AUX/3.5mm Coaxial and Optical 1/Bluetooth/Optical 2
Output Port: Amplifier output port/3.5mm Headphone port/Subwoofer
Output power:80W x 2
SNR(Signal to Noise): 90dB
Output consumption: 50W
EQ adjustment: 7
Headphone output(32ohm): 53mW & THD=0.04%
USB sampling rate: 24bit 96kHz
Optical sampling rate:44.1kHz-192kHz
Coaxial sampling rate:44.1kHz-192kHz
Treble adjustment range: ±8db, Bass adjustment range:±8db
Net Weight: 572g

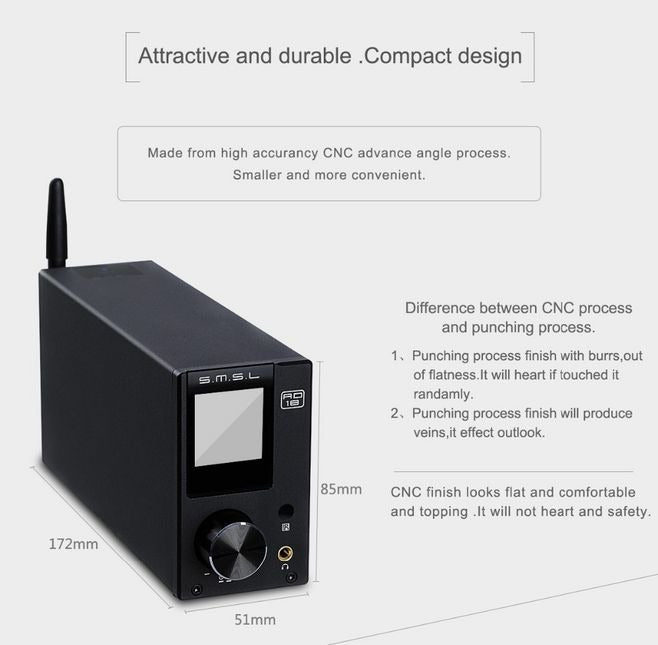

Machine Size: 172*51*85mm
