HiFi DAC: LA-QXD1 DAC uses more advanced multi-level voltage regulation technology, which will ensure that the power supply for its analog output is clean and pure. The background noise is very clean. It highlights the authenticity of the sound source itself, and all the details are perfectly displayed.
Full Balanced DAC: streamlined but excellent in nature. The small body of LA-QXD1 is full of high energy, supports fully balanced output, and is satisfied with connecting various post-level equipment. XLR balanced output is 4 Vrms@0dBFS. RCA single-ended output is 2 Vrms@0dBFS.

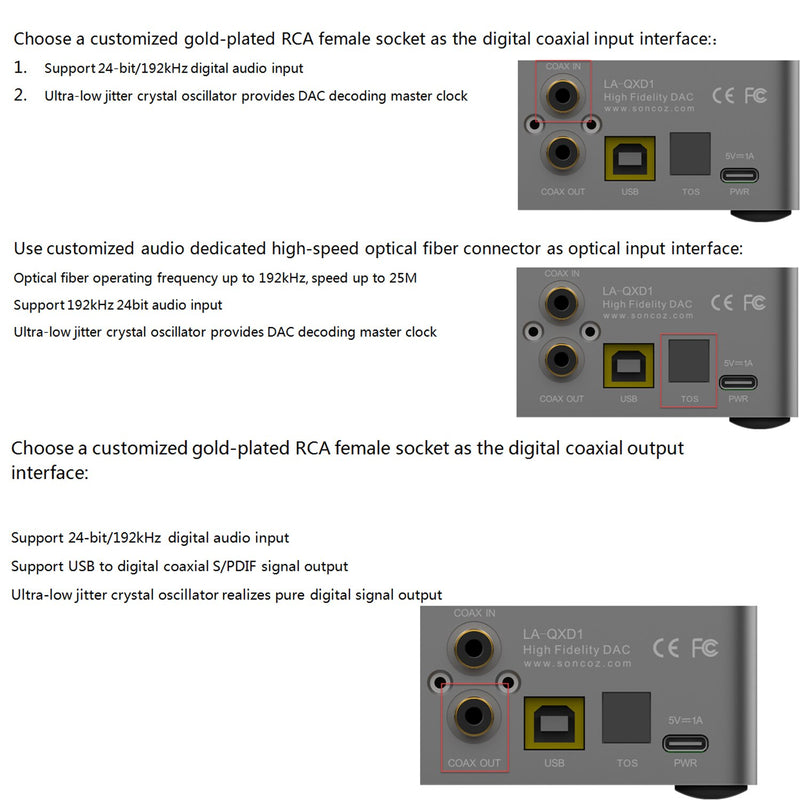

Rich Interfaces: SONCOZ LA-QXD1 Mini DAC has USB, optical fiber, and coaxial input. It also has digital coaxial output and analog line output: XLR balanced output and RCA single-ended output. It can be a high-resolution decoder or a digitizer.
Home Desktop DAC: LA-QXD1 is as compact as a mobile phone, and can be perfectly integrated in various scenes such as desks and offices. The LED light is small in size, and it is not dazzling when the light is dimmed, which adds a sense of atmosphere to the night music.The all-aluminum body matches the minimalist appearance, and the surface anodized treatment brings a very delicate feel. Full of sense of luxury.
Size: 150*87*37 mm (W*D*H)
Power input: DC 5V=1A
Power consumption: <4W
Power input: USB-C
Signal input: digital USB-B/optical/coaxial
Digital output mode: digital coaxial output
Analog line output: balanced XLR / single-ended RCA
RCA interface: digital coaxial input
USB-B input: DSD512, PCM32Bit/768kHz
Optical coaxial input: 24Bit/192kHz
Coaxial output: 24Bit/192kHz
Frequency response: 20Hz-20kHz XLR/RCA (±0.15dB)
Dynamic range: A-W XLR: >124dB, RCA: >124dB
SNR: A-W XLR: >122dB, RCA: >122dB
Output voltage amplitude:
THD+N: XLR/RCA <0.00015% (-116dB)
XLR: >141dB ; RCA: >141dB
XLR: 200Ω ; RCA: 100Ω
Noise floor: 4.3μV
After LA-QXD1 is powered on, the "USB" and "PWR" indicators on the front panel will light up, the default is USB input, and the volume is -60dB.
Filter Mode Switch
Click and hold the "PWR" button for 2 seconds to switch a filter mode. The combination of TOS/COAX/USB indicator lights cyclically displays. Please see the detailed picture for details.
