About this item

• Lossless Music Streamer Player. DP-01 is a lossless streaming player supporting one-click music casting from phones, tablets and computers. It streams online and local Hi-Res lossless music in real-time without compression, delivering sound quality on par with wired connection. Compatible with mainstream network streaming protocols, it pairs effortlessly with decoders, amplifiers and active speakers to build a professional Hi-Fi streaming system. Enjoy true high-definition lossless audio free from cable lim- itations.
• Multi-Room Playback Free Listening. Supports multi-room audio. Control and adjust volume for each room independently via one phone, with synchronized playback for immersive whole-home sound. Freely tailor loudness to different spaces, perfectly fitting home and office audio needs.
• High-Performance Decoding Chip. Adopts flagship Cirrus Logic CS43198 DAC chip, boasting nearly 130dB ultrahigh SNR and -115dB ultra-low THD, delivering an ultra-quiet background and precise restoration of subtle musical details.

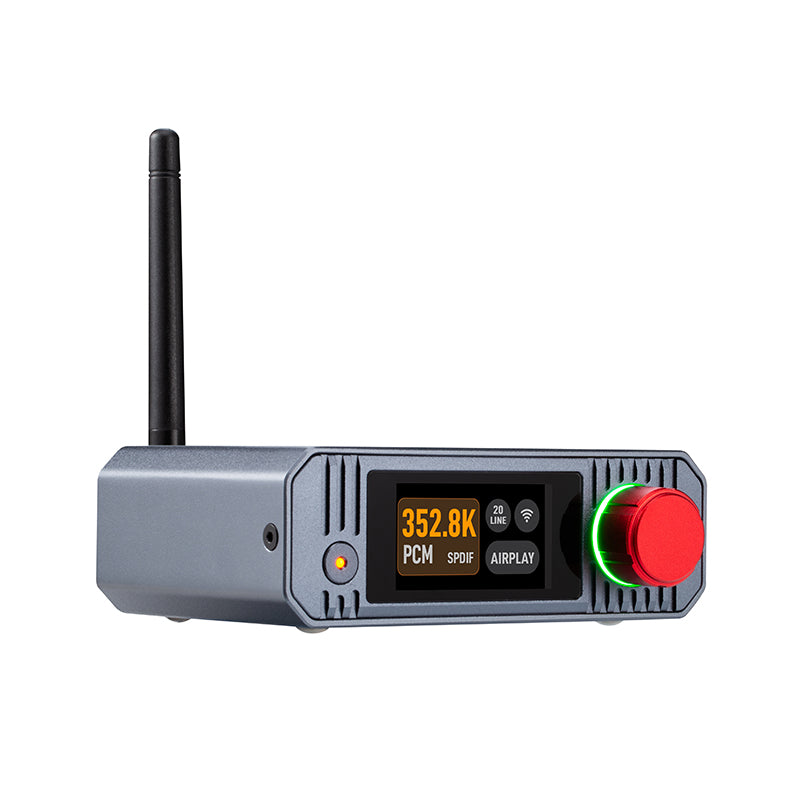

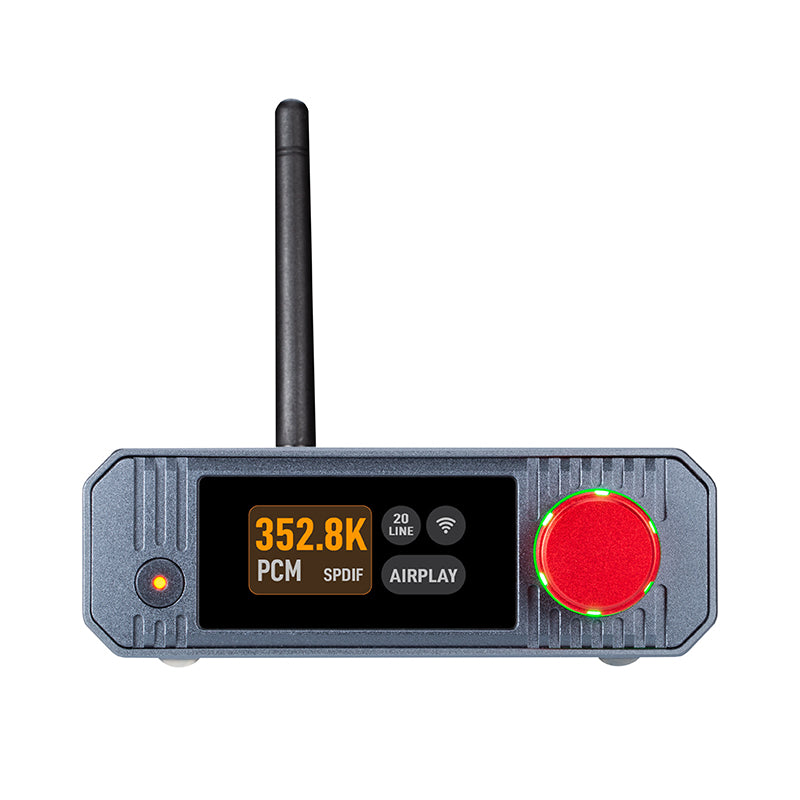

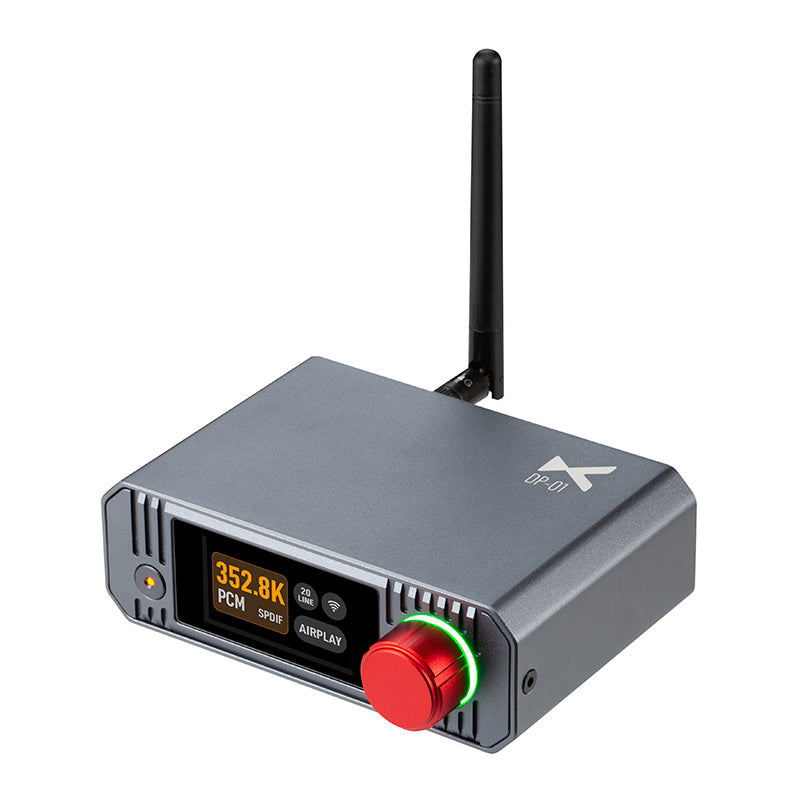

• TFT Color Display &Precise Volume Control. Built-in high-definition TFT color screen clearly shows device status, network, audio source and playback format. Supports 100-level precise stepless volume adjustment for smooth,jitter-free control. Fine-tune the volume accurately for late-night, daily and other listening scenarios to suit all preference.
• Intelligent Settings Worry-Free & Secure. Built-in smart auto-off and sleep timer save power and simplify use. The device powers down automatically after idle standby, while the sleep timer lets you set playback duration for bedtime, shutting off on its own for effort- less, worry-free listening.
• Wired & Wireless, Always Stable. 100Mbps wired Ethernet ensures fast stable transmission; 2.4G/5G dual-band Wi-Fi offers wider coverage and stronger anti-interference for lossless audio. Freely switch wired/wireless for whole-home seamless playback in all scenarios.

Specifications:
Power Input: TypeC, DC 5V/2A
Screen: 1.9-inch TFT color display
Wired Network: 100Mbps independent Ethernet port
Wireless Network: 2.4G + 5G dual-band Wi-Fi

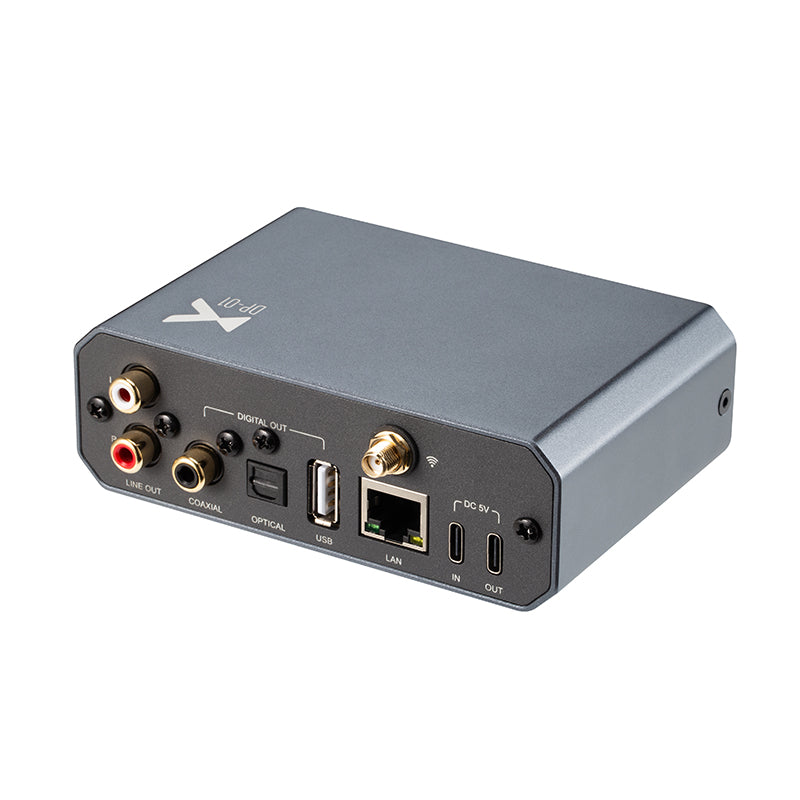

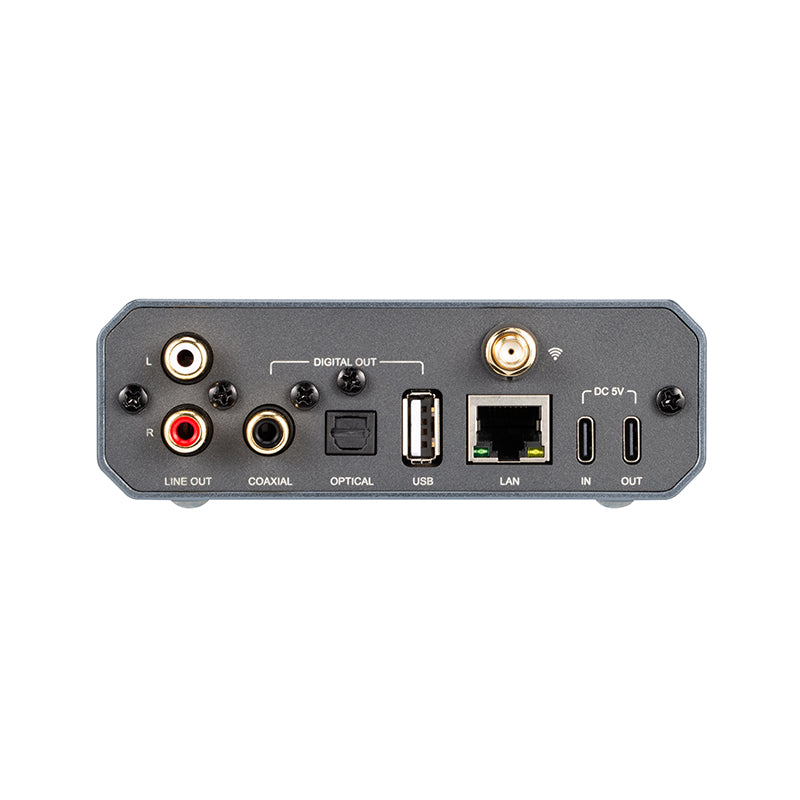

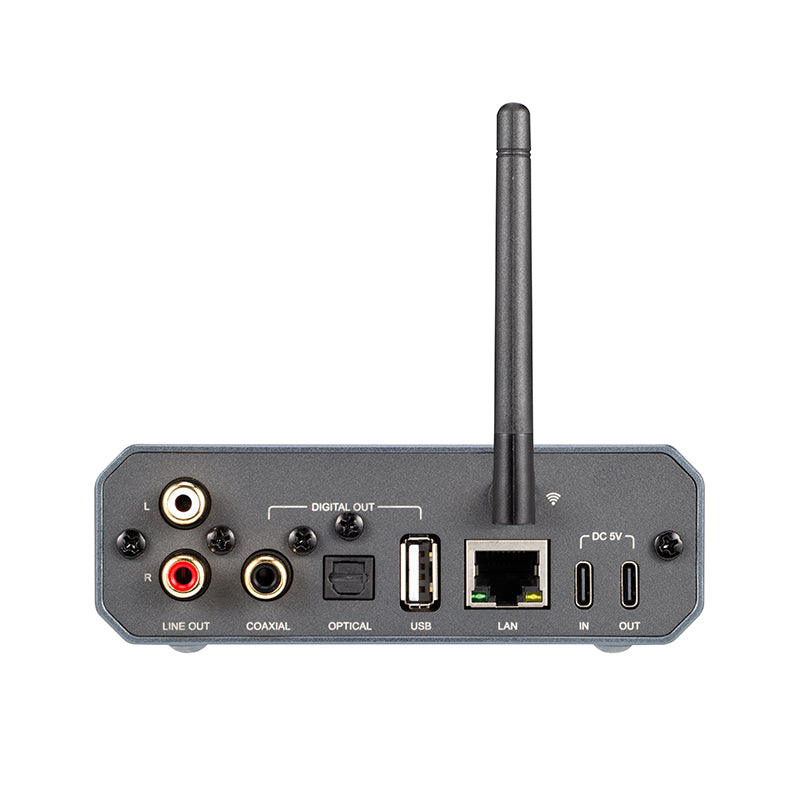

Digital Output Interfaces
USB Output: 1 x USB-A
USB Output Spec: PCM 44.1kHz~768kHz; DSD64~DSD512(DoP), MQA
S/PDIF Output: 1 x Optical, 1 x Coaxial
Coaxial Output Spec: PCM 44.1kHz~192kHz, DSD64 (DoP)
Optical Output Spec: PCM 44.1kHz~192kHz,DSD64 (DoP)

Analog Output Interfaces
Line Out: 1 x RCA
Supported Playback Spec: PCM 44.1kHz~384kHz;
DSD64~DSD256 (DoP), MQA
Output Level: 2.0Vrms
THD: 0.0003% @ 1kHz
SNR: 127dB
Crosstalk: 118dB

Other Functions:
Filter Settings,Display Brightness, Auto Screen-off
Timer, Auto Power-off, Sleep Timer

Dimensions:12.0x7.8x4.0cm
Weight: 0.35kg

What in box?
DP-01*1
Type-C Cable*1
WIFI Antenna*1
User Manual*1
